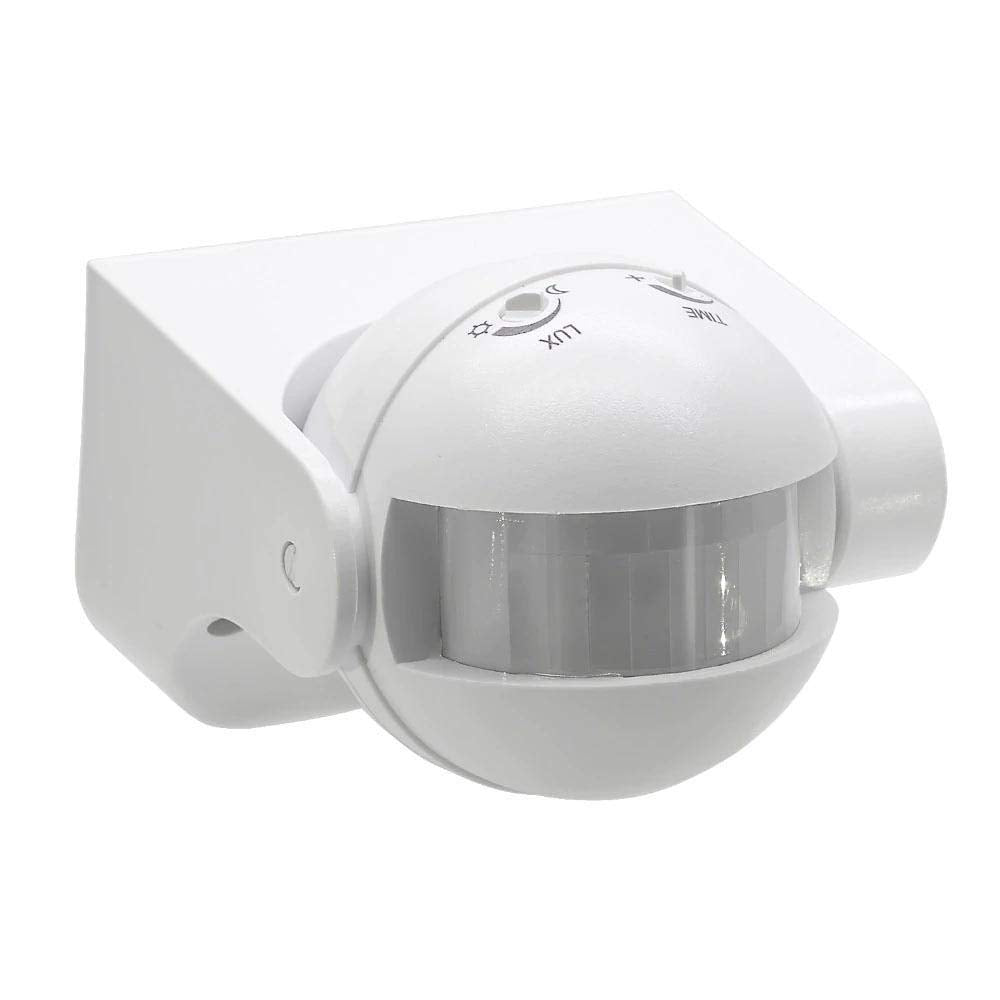

110V-240V Outdoor IP44 180 Degree 50/60Hz Security PIR Motion Movement Sensor Detector Switch Infrared Motion Sensor Switch

Brand : Other Type : Proximity Sensor This product is a new type of energy-saving lighting switch,it adopts high sensitivity detector,integrate circuit and SMT. It gathers automatic,convenient,safe,energy-saving, practical functions. It has wide detection range made up of up and down, left and right services field. It can identify day and night automatically. It is easy to install and its usage is wide. It has the function of power indiction and detection indication. Specification Power source: 110-240V AC Detection angle: 180° Detection distance: 10±2m Power frequency: 50Hz Ambient light: 3-2000LUX(adjustable) Rated load: 1200W (Resistive load like incandescent lamp) 300W (inductive load such as LED, energy saving lamp ) Working temperature: -20~+40 Time-delay: min: 10sec ± 3sec Max: 8min ± 2min Power consumption: 0.45W (work) 0.1W (static) Working humidity: <93%RH Installation height:1.8m-2.5m Detection motion speed: 0.6-1.5m/s IP Grade: IP44(Suitable for indoor and outdoor) Color: White Features Adopts the most advanced infrared human induction and optical technology. Energy-saving lighting switch, high sensitivity. Automatic,convenient,safe,energy-saving,practical. Can identify day and night automatically. Easy to install, widely usage. When selecting the mounting position take into account the following points. 1. The sensor is designed for optimum performance when mounted 2.5 meter above ground level. 2. Avoid positioning close to trees or shrubs, which may cause false triggering during wet windy weather. 3. Avoid pointing at or positioning close to heat sources such ad flu's or heat extraction units, which may cause false triggering. 4. Avoid mounting at srong electromagnetic disturtance, which may cause false triggering. Brand : Other Type : Proximity Sensor Are batteries needed to power the product or is this product a battery : 0 Is this a Dangerous Good or a Hazardous Material, Substance or Waste that is regulated for transportation, storage, and/or disposal? : 0

• Brand : Other
• Type : Proximity Sensor
• This product is a new type of energy-saving lighting switch,it adopts high sensitivity detector,integrate circuit and SMT
• Specification
• Power source: 110-240V AC
• Detection angle: 180°
• Detection distance: 10±2m
• Power frequency: 50Hz
